Grizzly Feeder

V TechMakkers (INDIA) Manufacture different types of Feeders. Feeders are applied for both primary as well as secondary crushing stations. These feeders are used to regulate the feeding of the jaw/cone crusher, which enables smooth run of the crusher with high production rate.

The Vibro feeders with Grizzly sections control the feed rate to the crusher by removing unnecessary material & bypassing the smaller material to the crusher for maximizing crushing capacity.

Some of its prominent characteristics include:


  • Special design of grizzly manganese bars eliminates Material clogging and to better sizing effect.
  • Four sets of load rubber bells stand to better stabilize the operation.
  • Heavy welded frame for better wear resistant.
  • Adjustable bolted grizzly bars to meet specific requirement of the user.
  • Special Quality vibrating Motor.

Technical Specification for Grizzly Feeder

Model Size (MM) Motor Power (HP) Maximum Feed Capacity * TPH
HGR1000 1000 x 3000 6 120
HGR1200 1200 x 4500 10 350

* Capacity Based on Regular Flow on Bulk Density of 1600 kgs per CUM.

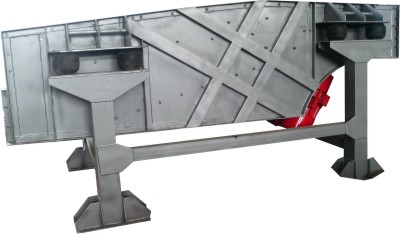

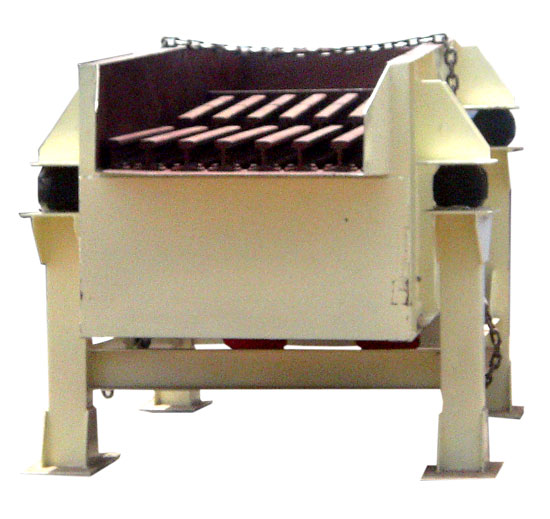

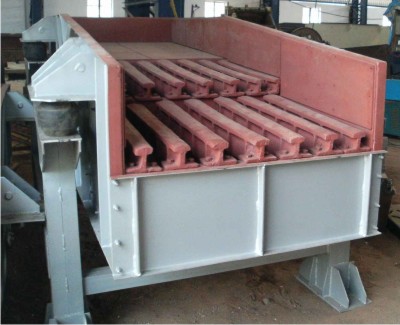

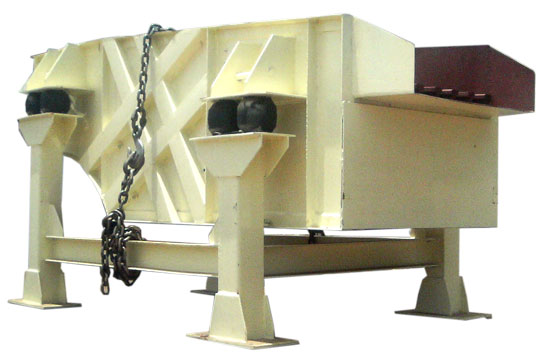

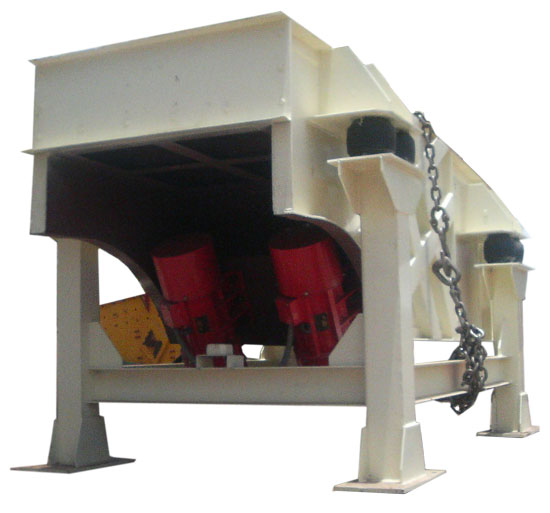

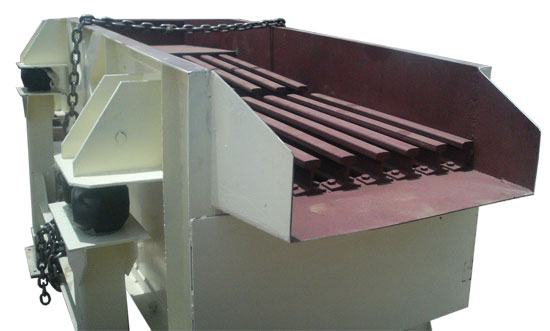

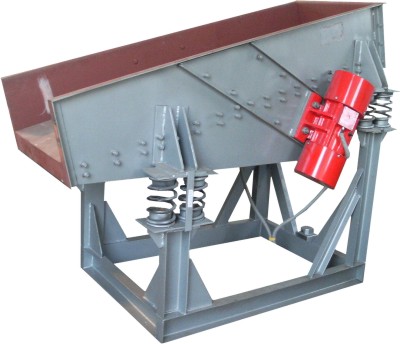

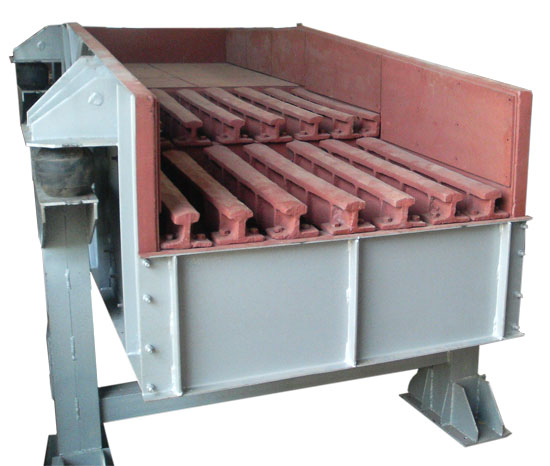

Grizzly Feeder Imagery
